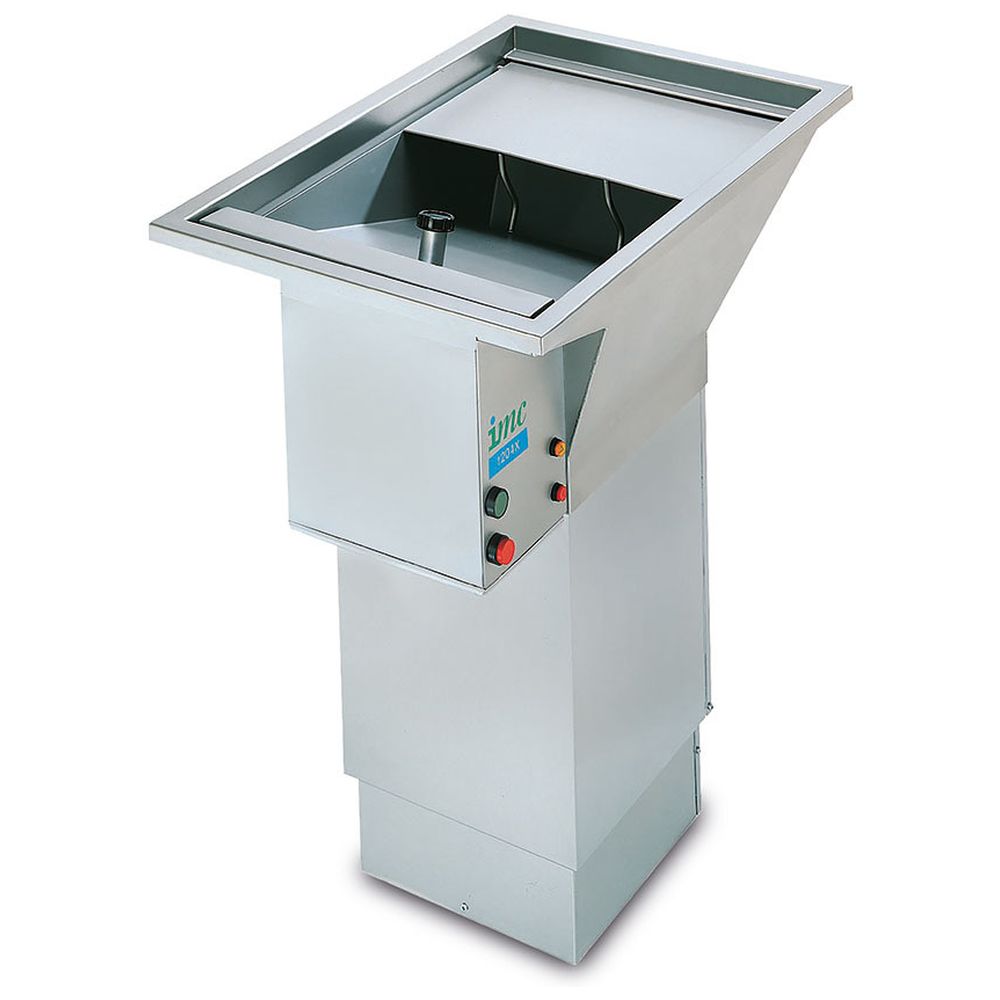

IMC Vulture 1204X FWD, Air Break option - W 514mm - 2.2kW - 700kg Waste/Hour - 1450 Covers/Hour IMCF54
IMC F54/620 Three Phase [5 wire] - W 514 mm
Fast and efficient disposal of up to 700kg of food waste per hour.
Handles up to 1450 covers per sitting - ideal for large kitchens.
For tough waste (red meat bones, cauliflower stalks and fish skins).
Free-standing design, but can be welded into tabling with E30/096 hopper rim.
Manually reversible motor to extend operational life.
Low-load cut-outs ensure energy and water efficiency.
Suitable for large kitchens with three-phase, five-wire power supply.
IMC F54/621 Three Phase [4 wire] - W 514 mm
Fast and efficient disposal of up to 700kg of food waste per hour.
Handles up to 1450 covers per sitting - ideal for large kitchens.
For tough waste (red meat bones, cauliflower stalks and fish skins).
Free-standing design, but can be welded into tabling with E30/096 hopper rim.
Manually reversible motor to extend operational life.
Low-load cut-outs ensure energy and water efficiency.
Suitable for large kitchens with three-phase, four-wire power supply.
IMC F54/725 Three Phase [4 wire] [with air break] - W 514 mm
Fast and efficient disposal of up to 700kg of food waste per hour.
Handles up to 1450 covers per sitting - ideal for large kitchens.
For tough waste (red meat bones, cauliflower stalks and fish skins).
Free-standing design, but can be welded into tabling with E30/096 hopper rim.
Manually reversible motor to extend operational life.
Low-load cut-outs ensure energy and water efficiency.
Fitted with a with class A airbreak kit, recommended for when connecting to a mains water supply.
Suitable for large kitchens with three-phase, four-wire power supply.
IMC F54/726 Three Phase [5 wire] [with air break] - W 514 mm
Fast and efficient disposal of up to 700kg of food waste per hour.
Handles up to 1450 covers per sitting - ideal for large kitchens.
For tough waste (red meat bones, cauliflower stalks and fish skins).
Free-standing design, but can be welded into tabling with E30/096 hopper rim.
Manually reversible motor to extend operational life.
Low-load cut-outs ensure energy and water efficiency.
Fitted with a with class A airbreak kit, recommended for when connecting to a mains water supply.
Suitable for large kitchens with three-phase, five-wire power supply.
- Range: Vulture
- Brand: IMC
- Water Connection Pressure Bar: 0.18
- Water Supplied From: Storage cistern
- Requires Installation: Yes
- Net Weight Kg: 74
- Unit Width (External) mm: 514
- Unit Depth (External) mm: 740
- Unit Height (External) mm: 850
- Capacity Kg per Hour: 700
- Covers Per Sitting: 1450
- Type of Waste: Tough waste
- Airbreak: No
- Operator Safety: Interlocks
- HP: 3
- Total Power kW: 2.2
- Mounting: Floor-mounted
- UK Warranty: 2 Years Parts and Labour Warranty
- Unit Type: Floor-mounted or welded into tabling
- Power Type: Electric
- Series: 04X Series
- IP Rating: IP55
- WRAS Approved: WRAS Compliant [if cistern fed]
- Drain Connection: 2" BSP threaded flange, connected to 54mm piping;
- Water Connection: 22mm
- Requires Electrical Supply: Yes
- Requires Hardwiring: Yes
- Three Phase Amps: 5.1
- Three Phase Voltage: 400
- UK 3 Pin Plug: No
- Electrical Supply Rating Watts: 2200
- Range: Vulture
- Brand: IMC
- Water Connection Pressure Bar: 0.18
- Water Supplied From: Storage cistern
- Requires Installation: Yes
- Net Weight Kg: 74
- Unit Width (External) mm: 514
- Unit Depth (External) mm: 740
- Unit Height (External) mm: 850
- Capacity Kg per Hour: 700
- Covers Per Sitting: 1450
- Type of Waste: Tough waste
- Airbreak: No
- Operator Safety: Interlocks
- HP: 3
- Total Power kW: 2.2
- Mounting: Floor-mounted
- UK Warranty: 2 Years Parts and Labour Warranty
- Unit Type: Floor-mounted or welded into tabling
- Power Type: Electric
- Series: 04X Series
- IP Rating: IP55
- WRAS Approved: WRAS Compliant [if cistern fed]
- Drain Connection: 2" BSP threaded flange, connected to 54mm piping;
- Water Connection: 22mm
- Requires Electrical Supply: Yes
- Requires Hardwiring: Yes
- Three Phase Amps: 5.1
- Three Phase Voltage: 400
- UK 3 Pin Plug: No
- Electrical Supply Rating Watts: 2200
- Range: Vulture
- Brand: IMC
- Water Connection Pressure Bar: 0.18
- Water Supplied From: Mains or storage cistern
- Requires Installation: Yes
- Net Weight Kg: 74
- Unit Width (External) mm: 514
- Unit Depth (External) mm: 740
- Unit Height (External) mm: 1014
- Capacity Kg per Hour: 700
- Covers Per Sitting: 1450
- Type of Waste: Tough waste
- Airbreak: Yes
- Operator Safety: Interlocks
- HP: 3
- Total Power kW: 2.2
- Mounting: Floor-mounted
- UK Warranty: 2 Years Parts and Labour Warranty
- Unit Type: Floor-mounted or welded into tabling
- Power Type: Electric
- Series: 04X Series
- IP Rating: IP55
- WRAS Approved: WRAS Compliant
- Drain Connection: 2" BSP threaded flange, connected to 54mm piping;
- Water Connection: 22mm
- Requires Electrical Supply: Yes
- Requires Hardwiring: Yes
- Three Phase Amps: 5.1
- Three Phase Voltage: 400
- UK 3 Pin Plug: No
- Electrical Supply Rating Watts: 2200
- Range: Vulture
- Brand: IMC
- Water Connection Pressure Bar: 0.18
- Water Supplied From: Mains or storage cistern
- Requires Installation: Yes
- Net Weight Kg: 74
- Unit Width (External) mm: 514
- Unit Depth (External) mm: 740
- Unit Height (External) mm: 1014
- Capacity Kg per Hour: 700
- Covers Per Sitting: 1450
- Type of Waste: Tough waste
- Airbreak: Yes
- Operator Safety: Interlocks
- HP: 3
- Total Power kW: 2.2
- Mounting: Floor-mounted
- UK Warranty: 2 Years Parts and Labour Warranty
- Unit Type: Floor-mounted or welded into tabling
- Power Type: Electric
- Series: 04X Series
- IP Rating: IP55
- WRAS Approved: WRAS Compliant
- Drain Connection: 2" BSP threaded flange, connected to 54mm piping;
- Water Connection: 22mm
- Requires Electrical Supply: Yes
- Requires Hardwiring: Yes
- Three Phase Amps: 5.1
- Three Phase Voltage: 400
- UK 3 Pin Plug: No
- Electrical Supply Rating Watts: 2200
