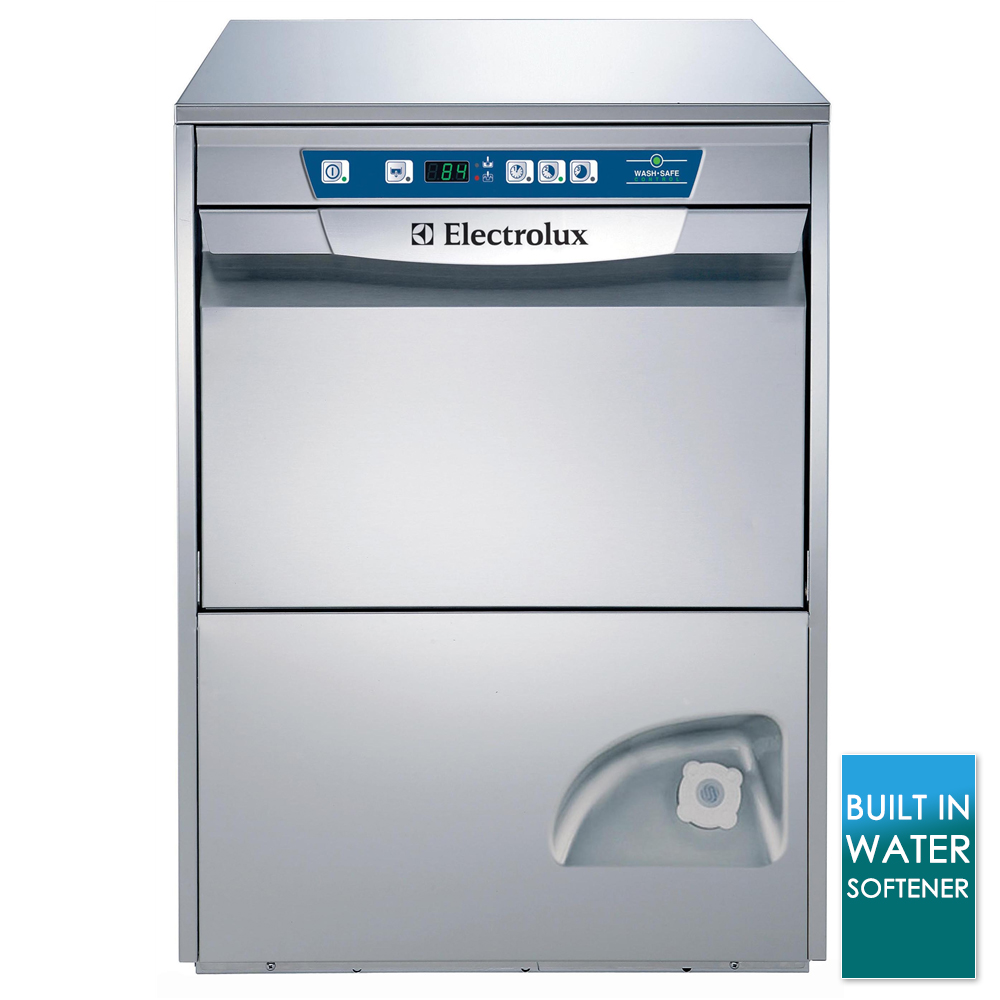

Electrolux 502063 Under Counter Dishwasher - WRAS Approved ELE502063

Electrolux 502063 Under Counter Dishwasher - WRAS Approved 502063

Order now 0800 026 0223

Product Features

  • Free commisioning by Electrolux Engineers
  • 4second (variable) pause after washing and before rinsing ensures that no drops of unclean water will fall on the clean items at the end of the rinsing cycle.
  • 90/120/240 seconds cycle.
  • Continuous water softener (CWS) to ensure complete and automatic regeneration of rinse water without pressure drop.
  • Incorporated Soft Start feature to offer additional protection to more delicate items.
  • Built-in rinse aid and detergent dispenser with automatic initial and continuous cycle loading for perfect result while minimizing service and maintenance needs.

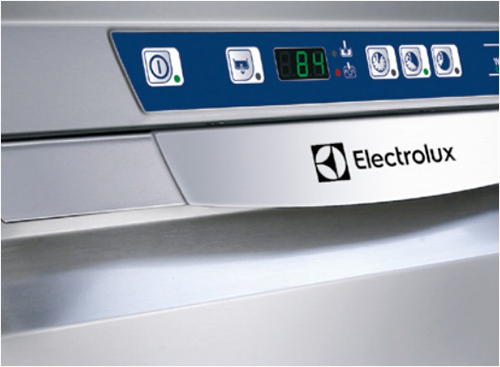

  • Digital read-out keeps operator informed as to temperatures.
  • Double skinned insulated wall ensures a low noise level and a reduction in heat loss from the machine.
  • Fault auto-diagnosis system.
  • Front loading of regeneration salt: 2 resin containers alternate for non-stop washing.
  • Green light of "WASH SAFE CONTROL" confirms that items have been rinsed properly.
  • High efficiency air gap (class A) in water inlet circuit to avoid water being siphoned back into the network as a result of a sudden drop in main pressures.
  • IPX 4 water protection.
  • Low noise level.
  • State-of-the-art electronic controls with built-in programming, self-diagnostics for serviceability and automatic interior self-cleaning cycle.
  • Three phase or single phase electrical connection, convertible on-site.
  • Unique strainer to enhance soil filtering.
  • Unique temperature interlock guarantees required temperatures in both the wash and final rinse.
  • WRAS-approved product.
  • Utilizes fresh hot rinse water.
  • Washing capacity of 40 baskets or 720 dishes per hour.
  • An effective rinse system uses only 2,5 litres of clean hot water per basket for lower running costs.
  • Constant temperature throughout the rinsing cycle regardless of the network's water pressure and temperature.
  • Slanted wash arm to avoid detergent-filled wash water dropping on clean dishes after the rinsing phase, thus guaranteeing ideal washing results.
  • Element protection from dry fire and low water.
  • Heavy duty Stainless steel construction.
  • Incorporated drain pump to control water level in wash tank draining.

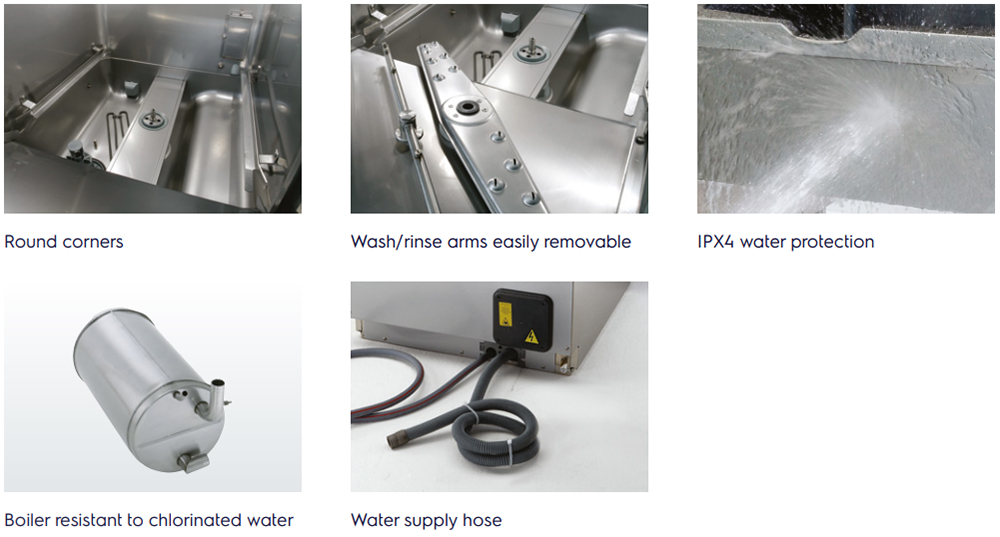

  • Interchangeable wash/rinse arms screw out for simple clean up.
  • Internal cavity as well as exterior panels are all 304 series Stainless steel.
  • Large deep drawn wash tank and internal wash area with round corners and no pipes to avoid dirt built-up.
  • Revolving Stainless steel wash/rinse arms above and below the basket.
  • Special designed Stainless steel nozzles provide superior cleaning action.
  • The boiler drain facilitates the evacuation of stagnant water after long periods of inactivity to ensure a higher level of hygiene.
  • Delivered with UK plug.

  • Drain Pump: With Drain Pump
  • Ext. Dimensions [W x D x H] (mm): 600 x 612 x 850
  • Requires Electrical Supply: Yes
  • Supply Type: Single or Three Phase
  • Single Phase Voltage: 230 V/1N ph/50 Hz
  • Three Phase Voltage: 400V 3N~; 230V 3~
  • UK 3 Pin Plug: Yes
  • Warranty: Two Years Parts and Labour Warranty
